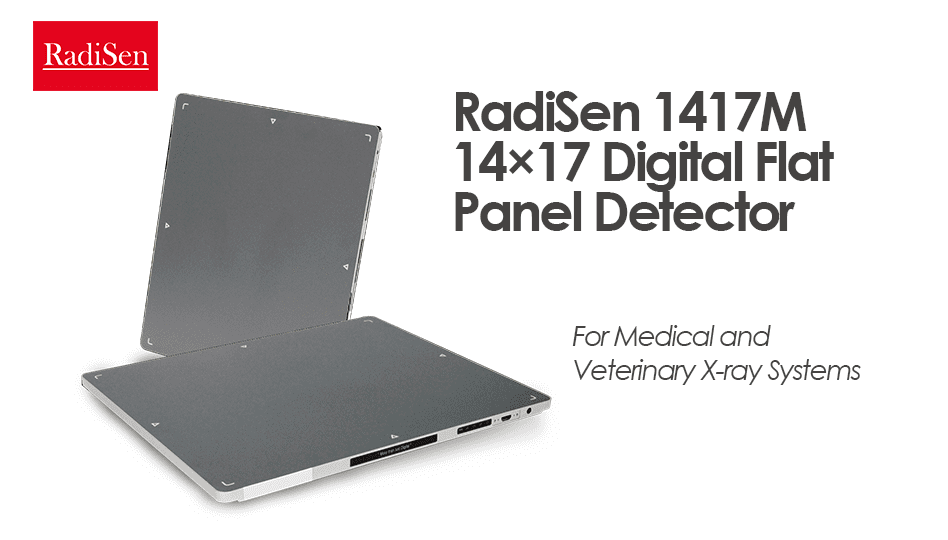

The RadiSen 1417M (PEDRA-1417M) is a cassette-sized (14×17″) digital flat panel detector that drops into existing bucky trays for a cost-effective transition from film or CR to full Digital Radiography (DR). With ISO 4090 form factor, high resolution, Auto Exposure Detection, and wired or wireless options, it’s ideal for clinics, hospitals, mobile units, and veterinary practices.
Why Choose the RadiSen 1417M?
- Seamless retrofit of analog X-ray rooms—no room renovation required
- High-definition imaging with up to 3.9 lp/mm spatial resolution
- Dual scintillator options: CsI:Tl for maximum sensitivity or Gadox for budget deployments
- Plug-and-play AED synchronization with most generators
- Lightweight (3.4 kg) and slim (15 mm) cassette form factor
- Wired (Ethernet) or wireless (Wi-Fi) connectivity for flexible installation
Key Features
- 14×17″ (43×35 cm) active area matching standard film cassettes
- 3,072×3,072 to 3,300×2,800 pixel matrix with 127–140 μm pitch
- Real-time fluoroscopy support up to 30 fps
- Auto Exposure Detection (line-triggered)
- Rugged build for daily clinical use
- DICOM 3.0, TIFF, JPEG export
Technical Specifications
Specification | Details |
Active Area | 14×17″ (35×43 cm) |
Pixel Matrix | ~3,300×2,800 or 3,072×3,072 |
Pixel Pitch | 127 μm or 140 μm |
Spatial Resolution | Up to 3.9 lp/mm |
Scintillator Options | CsI:Tl or Gd₂O₂S:Tb (Gadox) |
Fluoroscopy Frame Rate | Up to 30 fps |
AED | Auto Exposure Detection |
Dimensions (Panel) | 460×460×15 mm |
Weight | ~3.4 kg |
Interface | Gigabit Ethernet or Wi-Fi |
Power Supply | 12 V DC via control unit |
Data Output | DICOM 3.0, TIFF, JPEG |
Compatibility | ISO 4090 bucky trays, mobile carts, retrofit |
Ideal Applications
- Full-body radiography: chest, pelvis, spine
- Emergency & trauma imaging in ER or mobile units
- Orthopedic clinics: joints, extremities, spine
- Dynamic fluoroscopy: GI, vascular studies
- Veterinary diagnostics: small to large animals
- Mobile health clinics and outreach programs
Benefits at a Glance
- Rapid analog-to-DR conversion without infrastructure changes
- Superior image clarity at reduced patient dose
- Reliable AED-triggered capture for consistent results
- Flexible deployment: wired for fixed suites or wireless for mobile use
- Low maintenance and long product lifecycle
Included in the Package
- RadiSen PEDRA-1417M detector (CsI or Gadox; wired or wireless)
- Power & Control Unit (PCON)
- Ethernet or Wi-Fi docking station
- Sync & trigger cables (wired models)
- Detector management software with DICOM export
- Calibration files and QA documentation
Request Your Custom Quote
Convert your X-ray room to digital radiography quickly and affordably.
